Webcam Frame

Put a styled frame and a nameplate around your facecam that matches the rest of your overlay.

View as Markdown

On this page

The Webcam Frame draws a border around your camera, with an optional nameplate for your name and a second line. The middle stays see-through, so your real camera shows through from OBS.

Pick the same look as your other widgets and your camera fits right into the overlay.

Add it

Click Add in the toolbar (or press W) and pick Webcam Frame under Cam & Frames.
Choose an Aspect ratio that matches your camera, for example 16:9 (widescreen) or 9:16 (portrait).
Type your Name and, if you like, a Second line.
Pick a look with Choose a look and move the frame to where your camera should sit.

Line it up in OBS

The frame is only the border. In OBS, put your Video Capture Device below the PX Studio browser source and size it so it fills the hole in the frame. See Add to OBS for setting up the browser source.

Size and shape

Aspect ratio sets the shape. Custom lets you set Frame width (px) and Frame height (px) freely.
Band (px) is the thickness of the border. A slim line usually reads best; the range follows the look.
Corners (px) rounds the frame.
Vignette (px) adds a soft inner shadow at the edge of the hole. 0 is off.

Nameplate

Nameplate turns the plate on or off. Leave Name empty for no plate. You can change its color and size, put it Inside or Outside the frame and pick a Nameplate position, or keep the look's default. Offset X (px) and Offset Y (px) nudge it.

Colors and motion

Accent color colors the frame in most looks; leave it empty to keep the look's colors. Animation turns the frame's movement on or off.

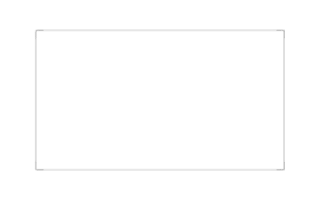

The Minimalism Dark look has extra options: a running beam with Beam length and Beam color, Corner brackets, a Border color and an Accent gradient such as Aurora or Sunset.

Tips

Use one frame per camera. A second frame for a guest works the same way.
Placement set to Outside keeps the nameplate off your face.

Looks

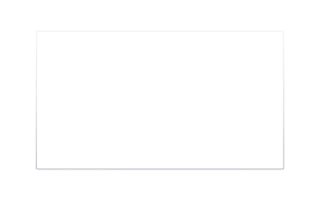

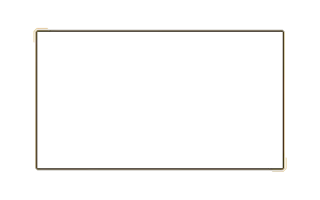

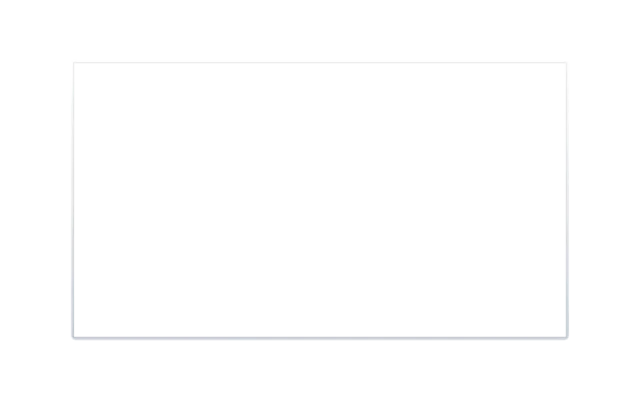

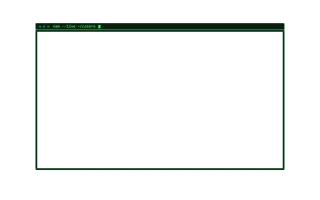

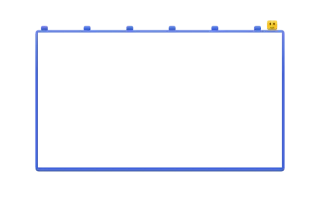

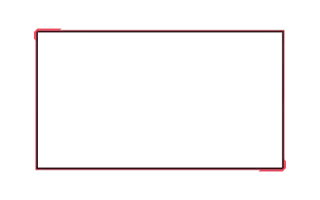

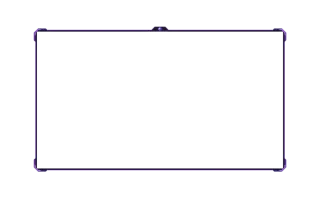

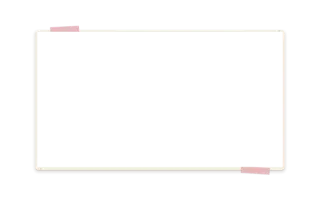

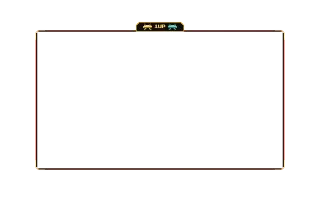

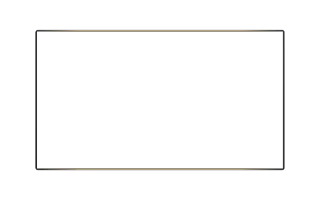

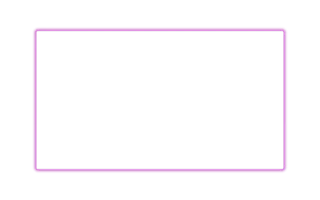

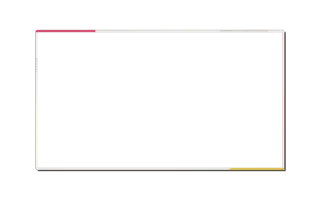

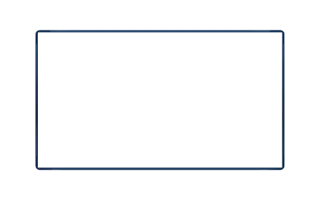

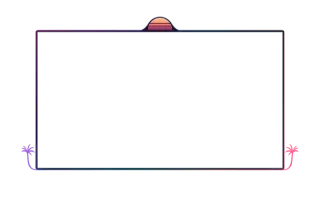

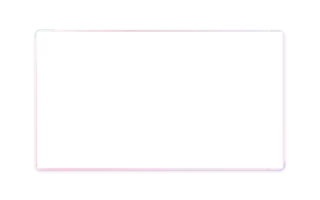

Pick a look under Look in the settings card. Every look is a complete style; colors and fonts you set yourself stay on top. 15 looks are available:

Settings

All settings live in the floating settings card on the right of the editor. Defaults are what a new widget starts with.

Content

Setting	Default	Values	Notes
Nameplate	On	On or off
Name	Empty	Text	Shown on the look's name plate. Leave empty for no plate.
Second line	Empty	Text	Optional line under the name.
Nameplate color	Look default	Any color
Nameplate size (%)	100	50 to 200
Placement	Inside	Inside, Outside
Nameplate position	Look default	Look default, Top left, Top center, Top right, Bottom left, Bottom center, Bottom right
Offset X (px)	0	-500 to 500
Offset Y (px)	0	-500 to 500

Appearance

Setting	Default	Values	Notes
Accent color	Look default	Any color	Colors the frame in most looks. Minimalism Dark uses it for the beam and the name tag edge. Leave empty to keep the look's colors.
Animation	On	On or off
Motion	Full (the beam runs)	Full (the beam runs), Static
Beam length	Standard	Short, Standard, Long, Extra long
Border color	Look default	Any color	Leave empty for the look's translucent white border.
Corner brackets	On	On or off
Corner color	Look default	Any color	Leave empty for white.
Beam color	Look default	Any color	Follows the accent color until you pick one.
Accent gradient	Look default	Look default, Rainbow, Aurora, Sunset, Ocean	Look default keeps the single accent color. A gradient runs through the beam and the name tag edge; a beam color of your own keeps the beam in that color.
Band (px)	5	1 to 40	A slim line reads best. The range follows the look.
Corners (px)	8	0 to 80
Vignette (px)	0	0 to 120	Soft inner shadow at the hole edge. 0 is off.
Editor fill	Off	Off, On
Editor fill color	`#18181b`	Any color	Only visible with the center fill enabled.

Layout

Setting	Default	Values
Aspect ratio	16:9 (widescreen)	Custom, 16:9 (widescreen), 4:3 (classic), 1:1 (square), 9:16 (portrait)
Frame width (px)	800	200 to 1920
Frame height (px)	450	150 to 1080
